Rack Mount Kit for SonicWall TZ270 / TZ370 / TZ470

RM-SW-T10:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

Looking to save more?! Our rackmounts bundles are at the best price, please contact us for assistant!

You can purchase the rackmount kit and hardware separately or save more by buying them bundle together. Each bundle comes with a hardware and rackmount design for that hardware.

Rack mount kit for:

- SonicWall TZ270
- SonicWall TZ370
- SonicWall TZ470

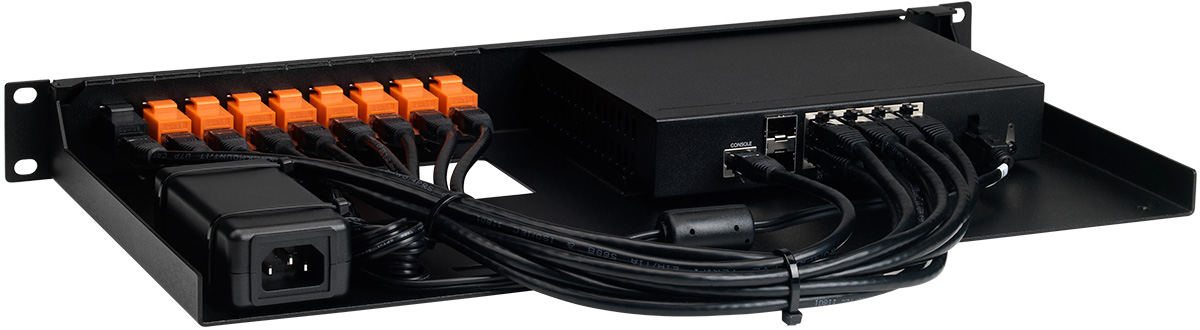

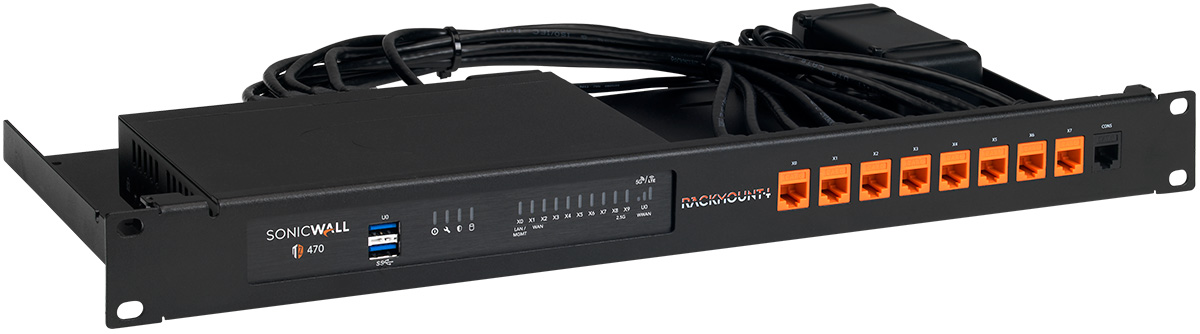

The RM-SW-T10 gives you the ability to mount your SonicWall desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your SonicWall device in the kit, place the retainers, connect the supplied cables and keystones, and fix the power supply to the rack.

Image Views:

Specifications
Color	RAL 9005
Height	1U
Dimensions (height x width x depth)	44 x 482 x 217mm
Number of connections brought to the front	9
Console port to the front	Yes
Cables	9x 0.5m cables
Couplers	9x RJ45 couplers
Supported Models	- SonicWall TZ270 - SonicWall TZ370 - SonicWall TZ470
What's in the box?	- 1x SW-Rack + couplers - Cables - Assembly materials - Installation guide

Download the RM-SW-T10 Datasheet (PDF).
