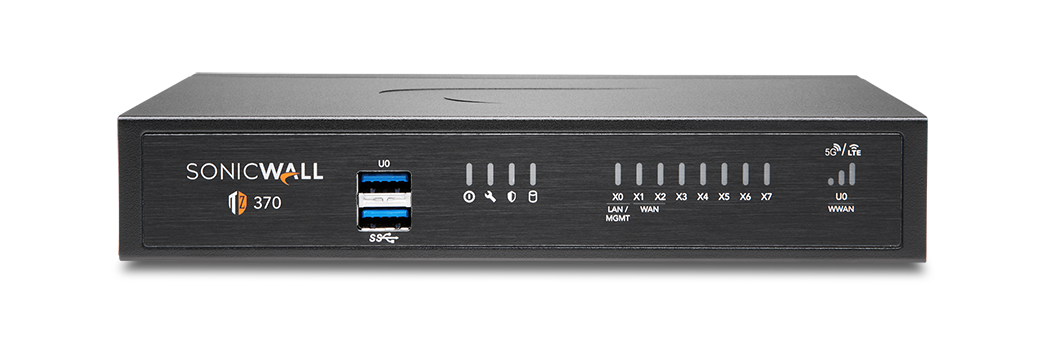

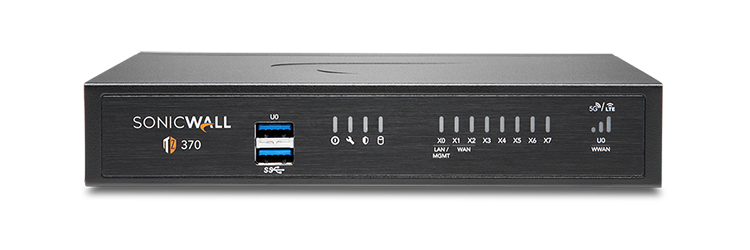

SonicWall TZ370 Series
Comprehensive Entry Level Next-Generation Firewall

The latest SonicWall TZ series, are the first desktop form factor nextgeneration firewalls (NGFW) with 10 or 5 Gigabit Ethernet interfaces. The series consist of a wide range of products to suit a variety of use cases.

Designed for small, mid-sized organizations and distributed enterprise with SD-Branch locations, the 7th generation (Gen 7) TZ series delivers industry-validated security effectiveness with best-in-class priceperformance. These NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, realtime breach detection and prevention.

The Gen 7 TZ series are highly scalable, with high port density of up to 10 ports. It features both inbuilt and an expandable storage of up to 256GB, that enables various features including logging, reporting, caching, firmware backup and more. An optional second power supply provides added redundancy in case of failure on select models.

Deployment of Gen 7 TZs are further simplified by Zero-Touch Deployment, with the ability to simultaneously roll out these devices across multiple locations with minimal IT support. Built on next-gen hardware, it integrates firewalling, switching and wireless capabilities, plus provides single-pane-of-glass management for SonicWall Switches and SonicWave Access Points. It allows tight integration with Capture Client for seamless endpoint security.

• 10/5/2.5/1 GbE interfaces in a desktop form factor
• SD-Branch ready
• Secure SD-WAN capability
• SonicExpress App onboarding
• Zero-Touch Deployment
• Single-pane-of-glass-management through cloud or firewall
• SonicWall Switch, SonicWave Access Point and Capture Client integration
• Built-in and expandable storage
• Redundant power

• High port density
• Cellular failover
• SonicOS 7.0
• TLS 1.3 support
• Groundbreaking performance
• High connection count
• Fast DPI performance
• Low TCO

Small to Medium size Business

• Save space and money with an integrated gateway security solution with firewalling, switching and wireless capabilities
• Reduce complexity and get the business running without relying on IT personnel with easy onboarding using SonicExpress App and Zero-Touch Deployment, and easy management through a single pane of glass
• Attain business continuity by providing failover to cellular connectivity
• Protect network from attacks with a comprehensive security solution that incorporates VPN, IPS, CFS, AV and much more
• Leverage high port density to power on multiple PoE devices such as IP phones and IP cameras with TZ570P
• Boost employee productivity by blocking unauthorized access with traffic segmentation and access policies

Distributed Enterprise with SD-Branches

• Enhance customer experience and adapt to the changing business needs by enabling next-gen branch connectivity with SD-Branch
• Drive business growth by investing in next-gen appliances with multi-gigabit and advanced security features, to future-proof against the changing network and security landscape
• Secure networks from the most advanced attacks with advanced security features and automatically block threats on decrypted traffic using protocols such as TLS 1.3
• Leverage end-to-end network security with seamless integration of SonicWave access points, SonicWall Switches and Capture Client
• Ensure seamless communication as stores talk to HQ via easy VPN connectivity which allows IT administrators to create a hub and spoke configuration for the safe transport of data between all locations
• Improve business efficiency, performance and reduce costs by leveraging Gen 7 TZ’s hardware and software enhancements, plus features such SD-WAN technology
• Scale quickly and effortlessly with SonicExpress App and Zero-Touch Deployment
• Ensure business continuity by providing failover to cellular connectivity
• Maintain compliance with security features, and leverage built-in and expandable storage to store logs for audit purposes

Firewall

• Stateful packet inspection
• Reassembly-Free Deep Packet Inspection
• DDoS attack protection (UDP/ ICMP/SYN flood)
• IPv4/IPv6 support
• Biometric authentication for remote access
• DNS proxy
• Full API support
• SonicWall Switch integration
• SD-WAN scalability
• SD-WAN Usability Wizard¹
• SonicCoreX and SonicOS containerization¹
• Connections scalability (SPI, DPI, DPI SSL)

Enhanced dashboard¹

• Enhanced device view
• Top traffic and user summary
• Insights to threats
• Notification center

TLS/SSL/SSH decryption and inspection

• TLS 1.3 with enhanced security¹
• Deep packet inspection for TLS/SSL/SSH
• Inclusion/exclusion of objects, groups or hostnames
• SSL control
• Enhancements for DPI-SSL with CFS
• Granular DPI SSL controls per zone or rule

Capture advanced threat protection²

• Real-Time Deep Memory Inspection
• Cloud-based multi-engine analysis
• Virtualized sandboxing
• Hypervisor level analysis
• Full system emulation
• Broad file type examination
• Automated and manual submission
• Real-time threat intelligence updates
• Block until verdict
• Capture Client

Intrusion prevention²

• Signature-based scanning
• Automatic signature updates
• Bi-directional inspection
• Granular IPS rule capability
• GeoIP enforcement
• Botnet filtering with dynamic list
• Regular expression matching

Anti-malware²

• Stream-based malware scanning
• Gateway anti-virus
• Gateway anti-spyware
• Bi-directional inspection
• No file size limitation
• Cloud malware database

Application identification²

• Application control
• Application bandwidth management
• Custom application signature creation
• Data leakage prevention
• Application reporting over NetFlow/IPFIX
• Comprehensive application signature database

Traffic visualization and analytics

• User activity
• Application/bandwidth/threat usage
• Cloud-based analytics

HTTP/HTTPS Web content filtering²

• URL filtering
• Proxy avoidance
• Keyword blocking
• Policy-based filtering (exclusion/inclusion)
• HTTP header insertion
• Bandwidth manage CFS rating categories
• Unified policy model with app control
• Content Filtering Client

VPN

• Secure SD-WAN
• Auto-provision VPN
• IPSec VPN for site-to-site connectivity
• SSL VPN and IPSec client remote access
• Redundant VPN gateway
• Mobile Connect for iOS, Mac OS X, Windows, Chrome, Android and Kindle Fire
• Route-based VPN (OSPF, RIP, BGP)

Networking

• PortShield
• Path MTU discovery
• Enhanced logging
• VLAN trunking
• Port mirroring (NSa 2650 and above)
• Layer-2 QoS
• Port security
• Dynamic routing (RIP/OSPF/BGP)
• SonicWall wireless controller
• Policy-based routing (ToS/ metric and ECMP)
• NAT
• DHCP server
• Bandwidth management
• A/P high availability with state sync
• Inbound/outbound load balancing
• High availability - Active/Standby with state sync
• L2 bridge, wire/virtual wire mode, tap mode, NAT mode
• Asymmetric routing
• Common Access Card (CAC) support

VoIP

• Granular QoS control
• Bandwidth management
• DPI for VoIP traffic
• H.323 gatekeeper and SIP proxy support

Debugging and diagnostics

• Enhanced packet monitoring
• SSH terminal on UI

Management, monitoring and support

• Capture Security Appliance (CSa) support
• Capture Threat Assessment (CTA) v2.0
• New design or template
• Industry and global average comparison
• New UI/UX, Intuitive feature layout¹
• Dashboard
• Device information, application, threats
• Topology view
• Simplified policy creation and management
• Policy/Objects usage statistics¹
• Used vs Un-used
• Active vs Inactive
• Global search for static data
• Storage support¹
• Internal and external storage management¹
• WWAN USB card support (5G/LTE/4G/3G)
• Network Security Manager (NSM) support
• Web GUI
• Command line interface (CLI)
• Zero-Touch registration & provisioning
• CSC Simple Reporting¹
• SonicExpress mobile app support
• SNMPv2/v3
• Centralized management and reporting with SonicWall Global Management System (GMS)²
• Logging
• Netflow/IPFix exporting
• Cloud-based configuration backup
• BlueCoat security analytics platform
• Application and bandwidth visualization
• IPv4 and IPv6 management
• CD management screen
• Dell N-Series and X-Series switch management including cascaded switches

Wireless

• SonicWave AP cloud management
• WIDS/WIPS
• Rogue AP prevention
• Fast roaming (802.11k/r/v)
• 802.11s mesh networking
• Auto-channel selection
• RF spectrum analysis
• Floor plan view
• Topology view
• Band steering
• Beamforming
• AirTime fairness
• Bluetooth Low Energy
• MiFi extender
• RF enhancements and improvements
• Guest cyclic quota

Integrated Wireless (TZ270/370/470/570W only)

• 802.11ac Wave 2 wireless
• Dual-band (2.4 GHz and 5.0 GHz)
• 802.11 a/b/g/n/ac wireless standards
• Wireless intrusion detection and prevention
• Wireless guest services
• Lightweight hotspot messaging
• Virtual access point segmentation
• Captive portal
• Cloud ACL
