SonicWall NSa 6700 Network Security Appliance
Comprehensive Mid Range Next-Generation Firewall

SonicWall NSa 6700 Network Security Appliance

Security Service Bundles

SonicWall security services turns firewall into a complete security solution. The security services is offered in three subscription bundles – Threat, Essential and Advanced Protection. (i) SonicWall Threat Protection Service Suite includes basic security services needed to ensure that the network is protected from threats in a cost-effective bundle. (ii) SonicWall Essential Protection Service Suite provides all essential security services needed to protect against known & unknown threats. (iii) SonicWall Advanced Protection Service Suite offers advanced security to extend the security of your network with cloud essential security services.

Feature	Threat Protection	Essential Protection	Advanced Protection
Gateway Anti-Virus, Intrusion Prevention, Application Control	√	√	√
Content Filtering Service	√	√	√
Anti-Spam	!	√	√
24x7 Support	√	√	√
Network Visibility	√	√	√
Capture ATP (Multi-Engine) Sandboxing	!	√	√
RTDMI Technology	!	√	√
DNS Security	√	√	√
Cloud Management	!	!	√
Cloud based Reporting – 7 Days	!	!	√

√ Part of the bundle
! Not available with the bundle, but can be purchased separately
X Not supported with the bundle

Essential Protection Service Suite includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Premium Services, Anti-Spam and 24x7 Support with firmware.

Advanced Protection Service Suite (APSS) includes - Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, NSM Essential with Management & 7-Day Reporting and 24x7 Support with firmware.

Advanced Gateway Security Suite (AGSS) - Includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Premium Services, and 24x7 Support with firmware

SonicWall Comprehensive Gateway Security Suite (CGSS) - Includes Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Premium Services, and 24x7 Support with Firmware Updates.

SonicWall TotalSecure – Advanced Edition - Includes Appliance and Advanced Gateway Security Suite (AGSS) which includes: Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware and Intrusion Prevention Service, Content Filtering Service, Application Intelligence & Control, and 24x7 Support

SonicWall Secure Upgrade – Advanced Edition SecureUpgrade – Advanced Edition SKUS offer 2 years of AGSS and heavily discounted hardware options to customers who would like to upgrade their older generation SonicWalls

SonicWall TotalSecure - Includes Appliance and Comprehensive Gateway Security Suite (CGSS) which includes: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Premium Services, and 24x7 Support with Firmware Updates.

SonicWall TotalSecure Email - Includes appliance or software license, Anti-Spam, McAfee Anti-Virus, Anti-Phishing, Compliance, 24x7 Support

SonicWall TotalSecure Email Renewal -Includes Anti-Spam, McAfee Anti-Virus, Anti-Phishing, Compliance, 24x7 Support; available for all Email Security systems

SonicWall Service and Support (8x5 or 24x7) Includes - firmware updates and upgrades, Web and phone-based support, Advance Exchange hardware replacement

SonicWall Secure Upgrade: As of July 1, 2008, SecureUpgrade SKUS offer 2 years of CGSS and heavily discounted hardware options to customers who would like to upgrade their older generation SonicWalls.

24x7 Support vs 8x5 Support

24x7 Support includes 24x7 telephone, email and Web-based Support, Software and firmware updates, Advance Exchange hardware replacement, access to electronic Support tools and moderated discussion groups.
8x5 Support includes 8x5 telephone, email and Web-based Support, Software and firmware updates, Advance Exchange hardware replacement, access to electronic Support tools and moderated discussion groups.

Advanced Gateway Security Suite (AGSS) vs Comprehensive Gateway Security Suite (CGSS)

SonicWall Advanced Gateway Security Suite (AGSS) integrates a wide range of network security services into a convenient, affordable package. AGSS is available as an add-on services for all physical and virtual SonicWall firewalls, including our NSsp, NSa, TZ and NSv Series

SonicWall Comprehensive Gateway Security Suite (CGSS) makes selecting your security services easy and fast by integrating all the network security and service required for protection against known threats into a convenient, affordable package. CGSS is available on all physical and virtual firewalls including the NSa, TZ and NSv Series.

Feature	CGSS	AGSS
Gateway Anti-Virus	Y	Y
Intrusion Prevention	Y	Y
Application Control	Y	Y
Content Filtering	Y	Y
24 x 7 Support	Y	Y
Capture ATP	N	Y

More Resources:

SonicWall Products

NSA 6700 SeriesBack to top

SonicWall NSa 6700
SonicWall NSA 6700 Appliance

#02-SSC-4332
List Price: ~~$23,755.00~~
Add to Cart for Pricing

SonicWall NSa Free Firewall Bundle

NSa 6700 FREE Firewall Bundle
Promotion: With the purchase of 3 years of Essential Protection Service Suite (EPSS) and a High Availability (HA) firewall, the Primary Firewall is FREE

#02-SSC-NSA6700PROMO
Get a Quote!

Get a Quote

Secure Upgrade PlusBack to top

SonicWall NSa 6700 Secure Upgrade Plus - Advanced Edition, 2 Year
Only for Upgrades: NSA 6700 Hardware with Advanced Protection Service Suite

#02-SSC-9580
List Price: ~~$42,755.00~~
Add to Cart for Pricing

SonicWall NSa 6700 Secure Upgrade Plus - Essential Edition, 2 Year
Only for Upgrades: NSA 6700 Hardware with Essential Protection Service Suite

#02-SSC-9586
List Price: ~~$41,090.00~~
Add to Cart for Pricing

SonicWall NSa 6700 Secure Upgrade Plus - Advanced Edition, 3 Year
Only for Upgrades: NSA 6700 Hardware with Advanced Protection Service Suite

#02-SSC-9582
List Price: ~~$57,965.00~~
Add to Cart for Pricing

SonicWall NSa 6700 Secure Upgrade Plus - Essential Edition, 3 Year
Only for Upgrades: NSA 6700 Hardware with Essential Protection Service Suite

#02-SSC-9588
List Price: ~~$54,965.00~~
Add to Cart for Pricing

SonicWall NSa 6700 Appliance + Subscription + Support BundleBack to top

SonicWall NSa 6700 Total Secure - Advanced Edition, 1 Year
SonicWall NSA 6700 Appliance with 1Yr of ADVANCED PROTECTION: Advanced Protection Service Suite (APSS) includes - Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, NSM Essential with Management & 7-Day Reporting and 24x7 Support with firmware.

#02-SSC-9592
List Price: ~~$42,755.00~~
Add to Cart for Pricing

SonicWall NSa 6700 Total Secure - Essential Edition, 1 Year
SonicWall NSA 6700 Appliance with 1Yr of Essential Protection Service Suite. Essential Protection Service Suite includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering ; 24x7 support and firmware

#02-SSC-9598
List Price: ~~$41,090.00~~
Add to Cart for Pricing

More pricing below, click here!

Overview:

Defeating advanced threats requires an advanced firewall solution built for the needs of your business. The SonicWall Network Security appliance (NSa) Mid-Range Firewall is next-generation security designed specifically for businesses of 250 users and up. Work with the confidence of knowing you’re protected against the day-to-day incursions as well as against advanced threats like ransomware, attacks against non-standard ports, and breaches in firewalls, all at the speed of business.

With cloud-based and on-box capabilities like TLS/SSL decryption and inspection, application intelligence and control, secure SD-WAN, real-time visualization, and WLAN management, SonicWall provides flexible, fast and cost-effective security to keep the threats out and your business thriving.

SonicWall Generation 7 (Gen 7) Network Security Appliance (NSa) next-generation firewalls (NGFWs) offers medium- to large-sized enterprises industry-leading performance at the lowest total cost of ownership in their class.

With comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering and IP reputation services, it protects the perimeter from advanced threats without becoming a bottleneck.

The Gen 7 NSa Series has been built from the ground up with the latest hardware components, all designed to deliver multi-gigabit threat prevention throughput — even for encrypted traffic. Featuring a high port density including multiple 1 GbE and 10 GbE ports, the solution supports network and hardware redundancy with high availability, clustering and dual power supplies.

Generation 7 – SonicOS 7.0 and Security Services

The Gen 7 NSa Series runs on SonicOS 7.0, a new operating system built from the ground up to deliver a modern user interface, intuitive workflows and user-first design principles. SonicOS 7.0 provides multiple features designed to facilitate enterprise-level workflows. It offers easy policy configuration, zero-touch deployment and flexible management — all of which allow enterprises to improve both their security and operational efficiency

The Gen 7 NSa Series supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 clustering and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-pane-of-glass interface to manage both switches and access points.

Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 7 NSa Series offers access to SonicWall’s advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Cloud Application Security, Capture Advanced Threat Protection (ATP) cloud-based sandboxing, Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) — for all traffic including TLS 1.3 — offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats.

Highlights

1 RU – Form Factor
16 x 1 GbE interfaces
3 x 10 GbE interfaces
2 Gbps Threat and Malware Analysis Throughput
Enterprise Internet Edge Ready
Latest Generation 7 SonicOS support
Secure SD-WAN capability
Intuitive single pane of glass management

TLS 1.3 support
Best-in-class price-performance
Fast DPI performance
Low TCO in its class
High port density for easy networking
SonicWall Switch, SonicWave Access Point and Capture Client integration
Redundant power

Features:

Blocks More Attacks with RTDMI™ - Real-Time Deep Memory Inspection (RTDMI™) proactively detects and blocks unknown malware via deep memory inspection in real time, a revolutionary approach to defend against zero-day and side-channel attacks and other unrecognized threats.
Secure Remote Workers - SonicWall NetExtender provides an intuitive SSL-VPN connection client that’s easy to deploy and configure. Easily provide your remote workers with secure access to your corporate network from Linux, Mac and Windows devices.
Secure SD-WAN Technology - Leave MPLS behind for a more agile, more secure and more cost-effective network optimized for today’s broadband-driven, cloud-infused landscape. Secure SD-WAN technology is built in to NSa firewalls, so there’s no need to purchase additional SD-WAN appliances and licenses.
Built-in Wireless Controller - Implement high-speed wireless security by combining a NSa series next-generation firewall with a SonicWall SonicWave wireless access point. NSa series firewalls and SonicWave access points both feature 2.5 GbE ports that enable multi-gigabit wireless throughput offered in Wave 2 wireless technology.
Low Total Cost of Ownership - Make a SonicWall NSa firewall the start of enterprise savings. From reduced costs through zero-touch deployment to enabling SD-WAN and delivering NetSecOPEN-verified threat block rates on par or better than competitors at a fraction of the cost, SonicWall NSa firewalls are security you can’t afford to be without.
Cloud-based & On-Premises Centralized Management - Gain greater visibility into your enterprise even as it becomes more complex on- and off-prem. Tightly integrated into the SonicWall ecosystem, bring your firewalls into a single-pane-of-glass management, licensing, reporting and analytics
High Performance and Port Density - Deploy next generation firewalls that are designed for mid-size and distributed enterprises to deliver much needed multi-gigabit threat prevention performance while providing high port density including 10 GbE ports for flexible network connectivity

Deployments:

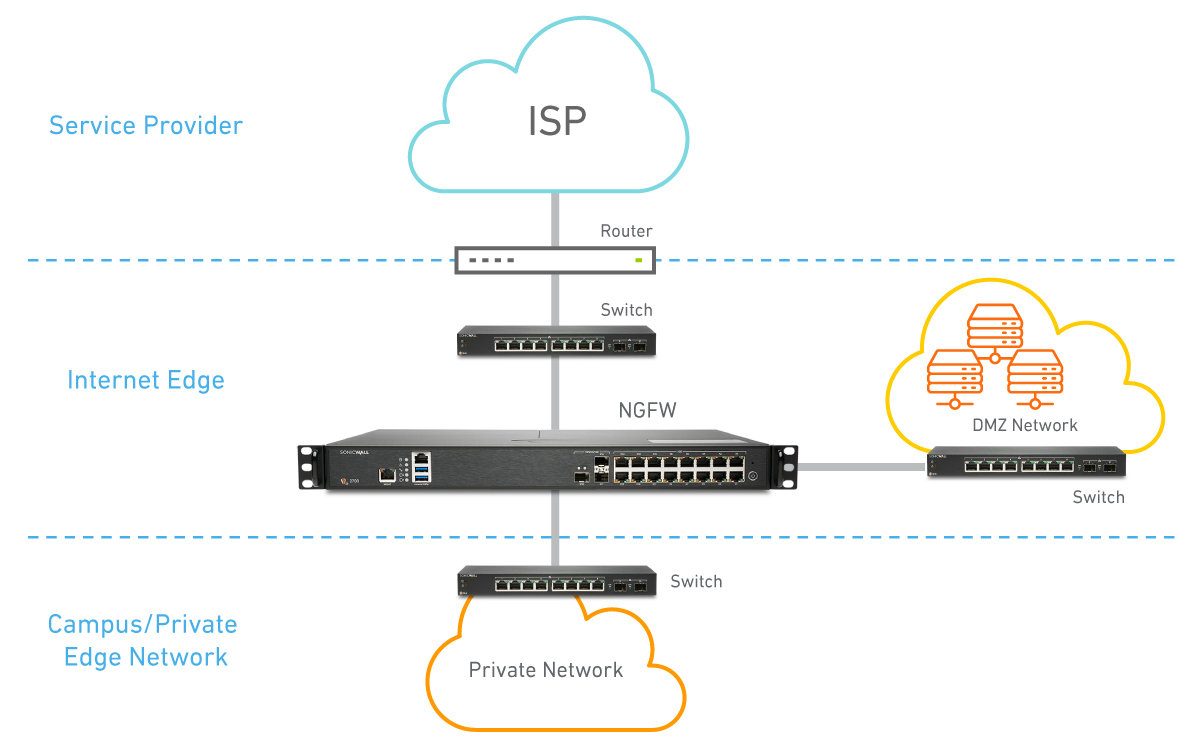

Internet Edge Deployment

In this standard deployment option, the Gen 7 NSa Series NGFW protects private networks from malicious traffic coming from the internet, allowing you to:

Deploy a proven NGFW solution with highest performance and port density (including 10 GbE connectivity) in its class
Gain visibility and inspect encrypted traffic, including TLS 1.3, to block evasive threats coming from the Internet — all without compromising performance
Protect your enterprise with integrated security, including malware analysis, cloud app security, URL filtering and reputation services
Save space and money with an integrated NGFW solution that includes advanced security and networking capabilities
Reduce complexity and maximize efficiency using a central management system delivered through an intuitive singlepane-of-glass user interface

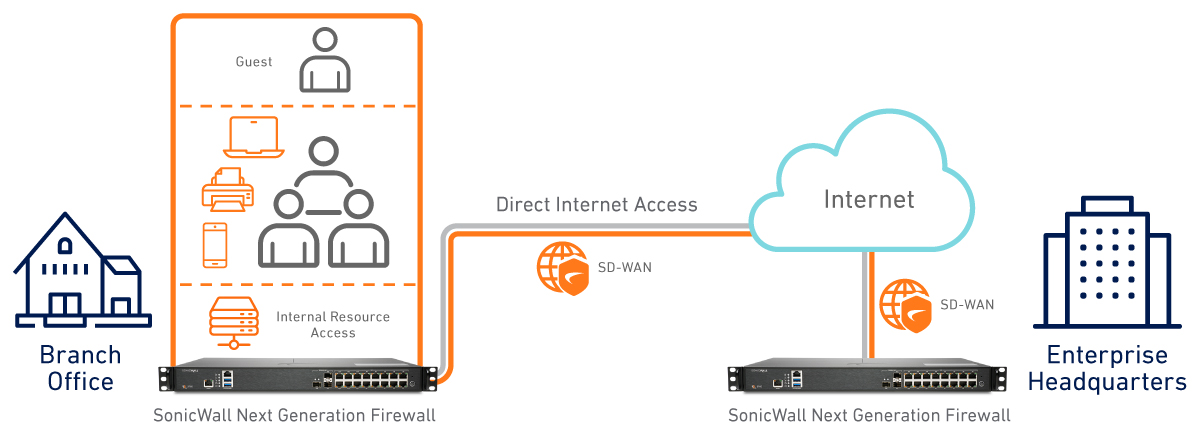

Medium and Distributed Enterprises

The SonicWall Gen 7 NSa Series supports SD-WAN and can be centrally managed, making it an ideal fit for medium and distributed enterprises. This deployment allows organizations to:

Future-proof against an ever-changing threat landscape by investing in a NGFW with multi-gigabit threat analysis performance
Provide direct and secure internet access to distributed branch offices instead of back-hauling through corporate headquarters
Allow distributed branch offices to securely access internal resources in corporate headquarters or in a public cloud, significantly improving application latency
Automatically block threats that use encrypted protocols such as TLS 1.3, securing networks from the most advanced attacks
Reduce complexity and maximize efficiency using a central management system delivered through an intuitive single pane of glass user interface
Leverage high port density that includes 10 GbE connectivity to support a distributed enterprise and wide area networks

SonicWall Medium and Distributed Enterprises

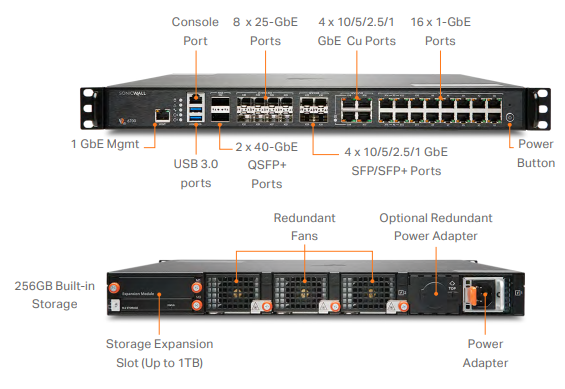

Specifications:

SonicWall NSa 6700 Network Security Appliance

FIREWALL GENERAL	NSa 2700 SERIES	NSa 3700 SERIES	NSa 4700 SERIES	NSa 6700 SERIES
Operating system	SonicOS 7.0
Interfaces	16x1GbE, 3x10G SFP+, 2 USB 3.0, 1 Console, 1 Management port	24x1GbE, 6x10G SFP+, 4x5G SFP+, 2 USB 3.0, 1 Console, 1 Mgmt. port	6 x 10G/5G/2.5G/1G (SFP+); 24 x 1GbE Cu 2 USB 3.0, 1 Console, 1 Management port	2x40G; 8x25G, 4 x10G/5G/2.5/1G SFP+, 4 x 10G/5G/2.5G/1G (Cu); 16 x 1GbE (Cu) 2 USB 3.0, 1 Console, 1 Mgmt. port
Storage	64GB M.2	128GB M.2	128GB	256GB M.2
Expansion	Storage Expansion Slot (Up to 256GB)	Storage Expansion Slot (Up to 256GB)	Storage Expansion Slot (Up to 1TB)	Storage Expansion Slot (Up to 1TB)
VLAN interfaces	256	256	512	512
Access points supported (maximum)	32	32	512	512
FIREWALL/VPN PERFORMANCE	NSa 2700	NSa 3700	NSa 4700	NSa 6700
Firewall inspection throughput¹	5.2 Gbps	5.5 Gbps	18 Gbps	36 Gbps
Threat Prevention throughput²	3.0 Gbps	3.5 Gbps	9.5 Gbps	19 Gbps
Application inspection throughput²	3.6 Gbps	4.2 Gbps	11 Gbps	20 Gbps
IPS throughput²	3.4 Gbps	3.8 Gbps	10 Gbps	20 Gbps
Anti-malware inspection throughput²	2.9 Gbps	3.5 Gbps	9.5 Gbps	18.5 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL)²	800 Mbps	850 Mbps	5 Gbps	9 Gbps
IPSec VPN throughput³	2.10 Gbps	2.2 Gbps	11 Gbps	19 Gbps
Connections per second	21,500	22,500	115,000	153,000
Maximum connections (DPI)	500,000	750,000	2,000,000	6,000,000
VPN	NSa 2700	NSa 3700	NSa 4700	NSa 6700
Site-to-site VPN tunnels	2,000	3,000	4,000	6,000
Encryption/authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
VPN features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported	Microsoft® Windows 10
NetExtender	Microsoft Windows 10, Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10
SECURITY SERVICES	NSa 2700	NSa 3700	NSa 4700	NSa 6700
Deep Packet Inspection services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Supported
Application Visualization	Yes	Yes	Yes	Yes
Application Control	Yes	Yes	Yes	Yes
Capture Advanced Threat Protection	Yes	Yes	Yes	Yes
DNS Security	Yes	Yes	Yes	Yes
NETWORKING	NSa 2700	NSa 3700	NSa 4700	NSa 6700
IP address assignment	Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes	1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols⁴	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
VoIP	Full H.323v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications	FIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
HARDWARE	NSa 2700	NSa 3700	NSa 4700	NSa 6700
Form factor	1U Rack Mountable	1U Rack Mountable	1U Rack Mountable	1U Rack Mountable
Power supply	60W	90W	1x350W	1x350W
Maximum power consumption (W)	21.5	36.3	135.8	139.2
Input power	100-240 VAC, 50-60 Hz
Total heat dissipation (BTU)	73.32 BTU	123.78 BTU	463.1 BTU	474.4 BTU
Dimensions	43 x 32.5 x 4.5 (cm) 16.9 x 12.8 x 1.8 in		43 x 46.5 x 4.5 (cm) 16.9 x 18.1 x 1.8 in
Weight	4.0 kg / 8.8 lbs	4.6 kg / 10.2 lbs	7.8 Kg	8.1 Kg
WEEE weight	4.2 kg / 9.3 lbs	4.8 kg / 10.6 lbs	9.6 Kg	9.9 Kg
Shipping weight	6.4 kg / 14.1 lbs	7 kg / 15.4 lbs	13.5 Kg	13.8 Kg
Environment (Operating/Storage)	32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity	5-95% non-condensing		0-90% R.H non-condensing
REGULATORY	NSa 2700	NSa 3700	NSa 4700	NSa 6700
Major regulatory compliance (wired models)	FCC Class B, FCC , ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, TUV/ GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL

*Future use.

¹ Testing Methodologies: Maximum performance based on RFC 2544 (for firewall). Actual performance may vary depending on network conditions and activated services.

² Threat Prevention/GatewayAV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple flows through multiple port pairs. Threat Prevention throughput measured with Gateway AV, Anti-Spyware, IPS and Application Control enabled.

³ VPN throughput measured using UDP traffic at 1280 byte packet size adhering to RFC 2544. All specifications, features and availability are subject to change.

⁴ BGP is available only on SonicWall TZ400, TZ500 and TZ470.

⁵ All TZ integrated wireless models can support either 2.4GHz or 5GHz band. For dual-band support, please use SonicWall's wireless access point products
