SonicWall Analytics Licenses, Subscriptions & Renewals
Transforming data into information, information into knowledge, knowledge into decisions and decisions into actions

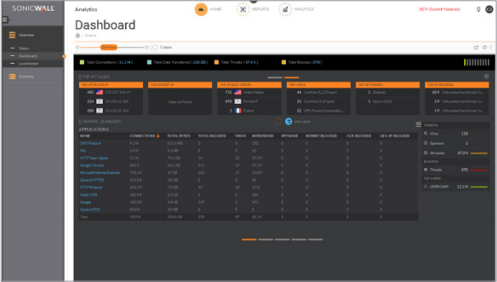

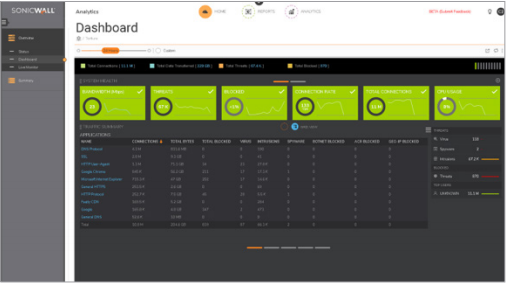

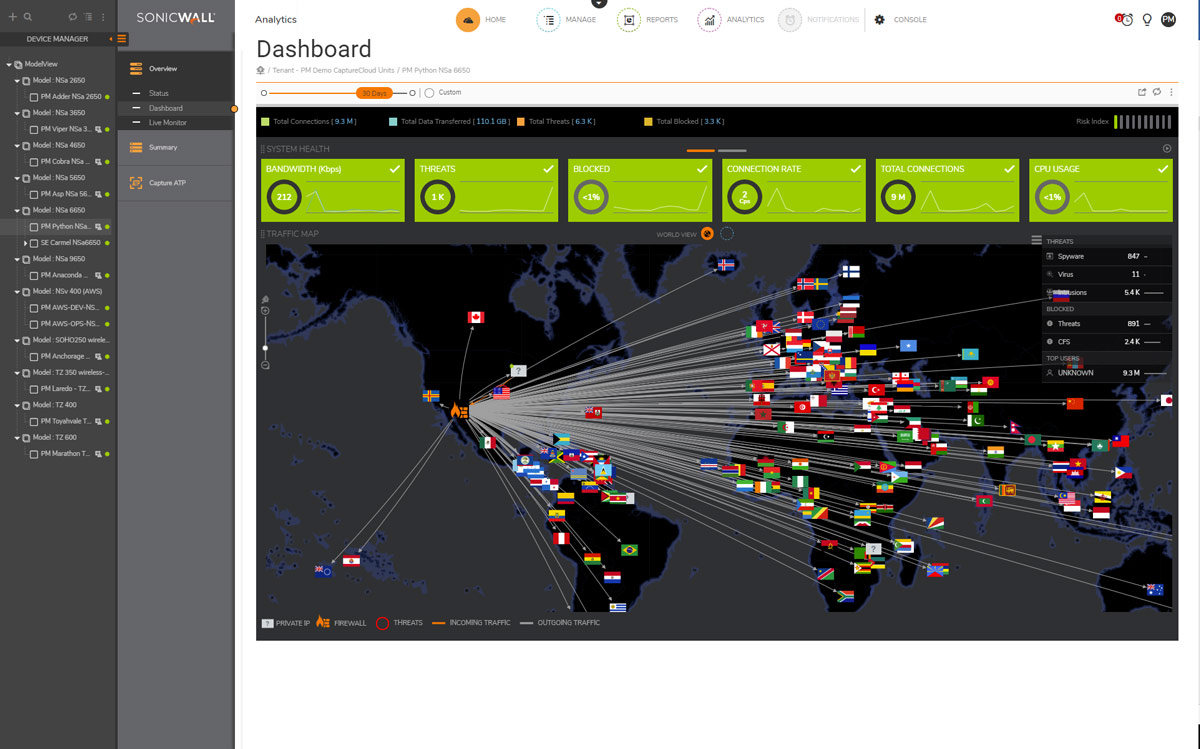

Dashboard

The Dashboard provides a visual status of your SonicWall security infrastructure and allows you to see whether you have issues and where to focus to resolve them. System Health view shows the status of the appliance.

Users

The Users/Sessions page provides data as it relates to the users connected to the system. You can track user level transactions and activities by filtering on several different options. Drill down pages display users’ activity trends such as application and web utilization, access, and connections across your network environment.

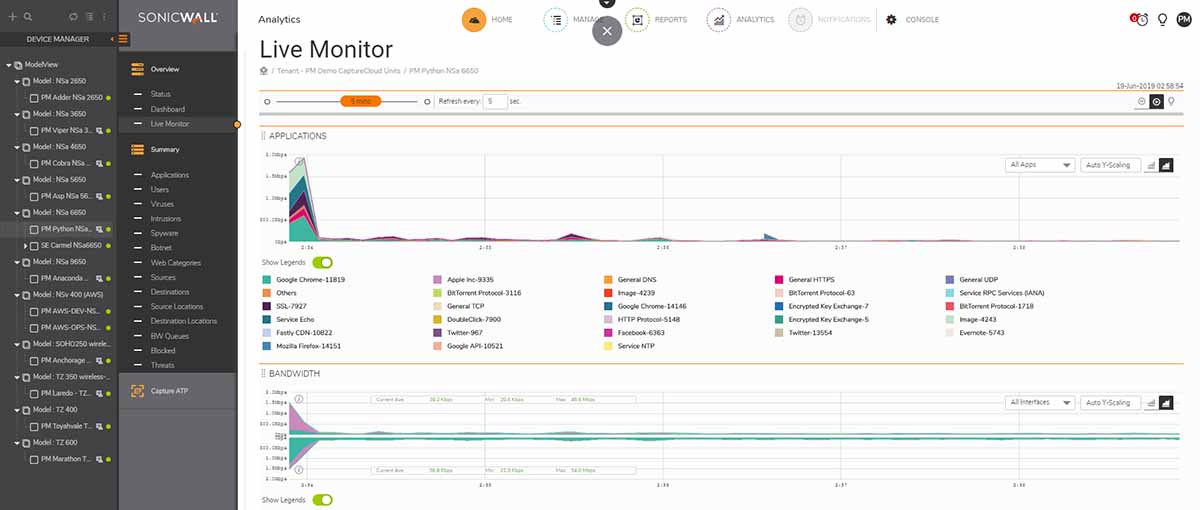

Live Monitor

The Live Monitor page shows real-time view of the packets forwarded by the firewall.

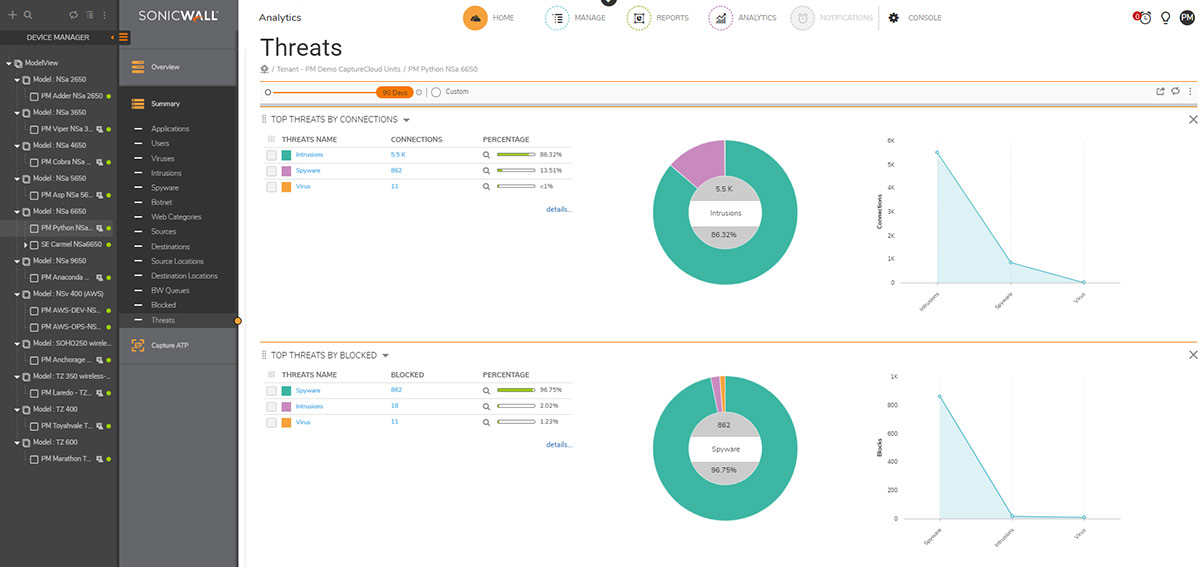

Threats

The Threats page tracks the number of connections with threats, and provides detailed information on each one.

Summary Dashboard with visualizations and charts

• Bandwidth rate
• CPU utilization
• Connection count
• Connection rate per second
• Risk index (scale 1-10)
• Block percentage
• Total connections
• Total data transferred
• Top applications
• Top intrusions
• Top URL categories
• Top viruses
• Number of viruses, intrusions, spyware, botnets

Live Monitor streaming with area/bar charts

• Applications
• Interface ingress/egress, average, min, peak
  • Bandwidth
  • Packet rate
  • Packet size
  • Connection rate
• Usage
  • Connection count
  • Multi-core monitor

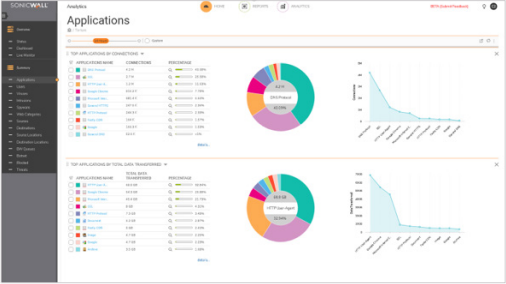

Top Summary Dashboards with drill-downs

• Applications
• Users
• Viruses
• Intrusions
• Spyware
• Web categories
• Sources
• Destinations
• Source locations
• Destination locations
• BW queues
• Botnet

Reports with drill-downs, export to pdf/csv, and scheduled emailing

• Applications / Users / Sources / Destinations
  • Connections
  • Total connections blocked
  • Connections blocked by access rule
  • Connections blocked by threat
  • Connections blocked by botnet filter
  • Connections blocked by GeoIP filter
  • Connections blocked by Content Filtering Service
  • Virus
  • Intrusions
  • Spyware
  • Total data transferred
  • Data sent
  • Data received
• Viruses / Intrusions / Spyware / Web categories / Source locations / Destination locations / BW queues
  • Connections
  • Total data transferred
  • Data sent
  • Data received
• Botnet
  • Connections
• Export
  • .pdf
  • .csv
• Scheduled Reports
  • Flow Reporting
  • Capture Threat Assessment (SWARM)
  • Daily / Weekly / Monthly
  • Archive / Email / PDF

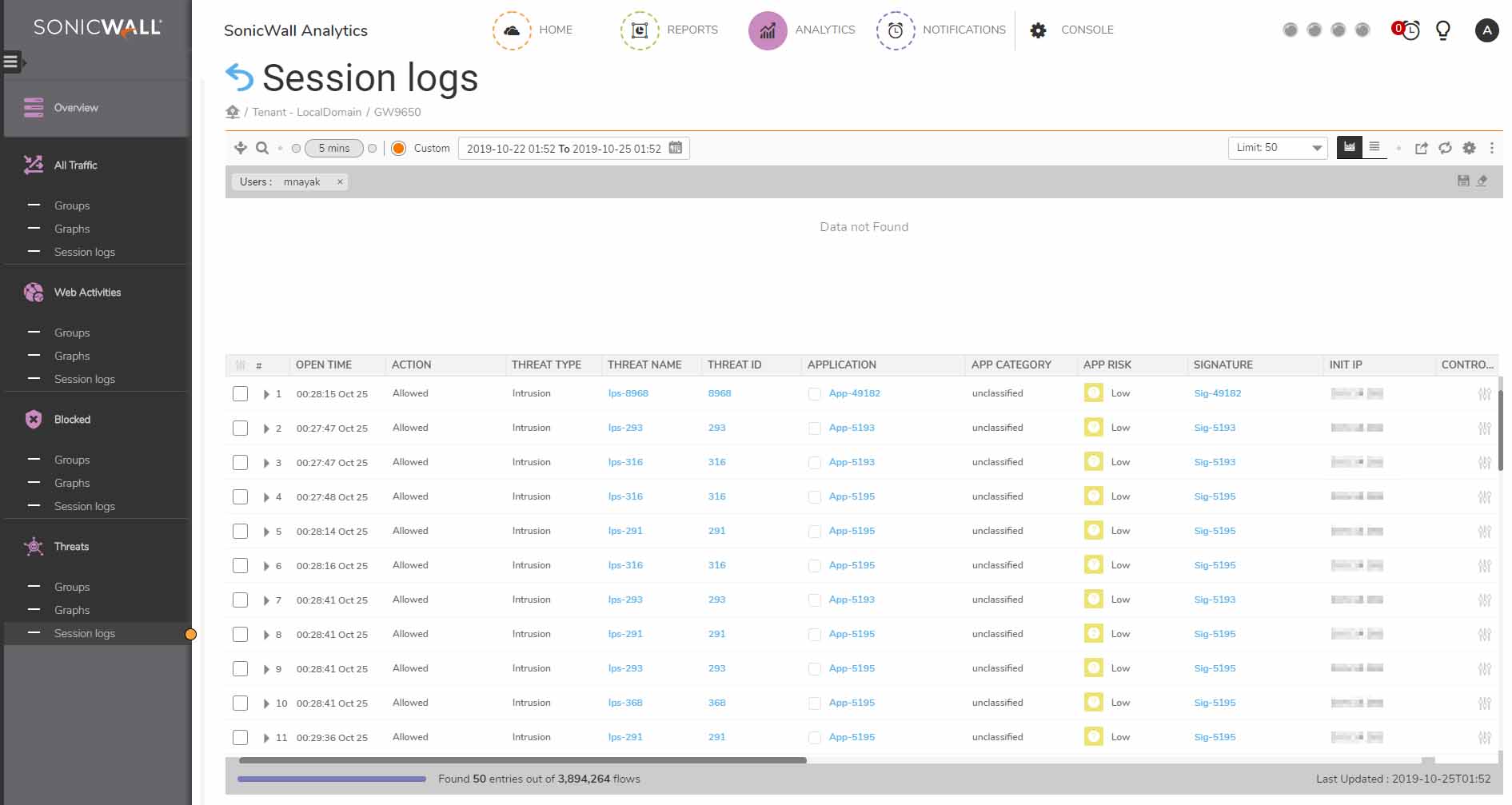

Analytics Session Viewer with drill- downs, filtering, export of individual session data

• Traffic analytics on any combination of:
  • Application
  • App Category
  • App Risk
  • Signature
  • Action

• Initiator/responder IP
• Initiator/responder country
• Initiator/responder port
• Initiator/responder bytes
• Initiator/responder interface
• Initiator/responder index
• Initiator/responder gateway
• Initiator/responder MAC
• Protocol
• Rate (kbps)
• Flow ID
• Intrusion
• Virus
• Spyware
• Botnet
• Threats / Blocked analytics on any combination of:
• Threat name
• Threat type
• Threat ID
• Application
• App category
• App risk
• Signature
• Action
• Initiator/responder IP
• Initiator/responder country
• Initiator/responder port
• Initiator/responder bytes
• Initiator/responder interface
• Initiator/responder index
• Initiator/responder Gateway
• Initiator/responder MAC
• Protocol
• Rate (kbps)
• Flow ID
• Intrusion
• Virus
• Spyware
