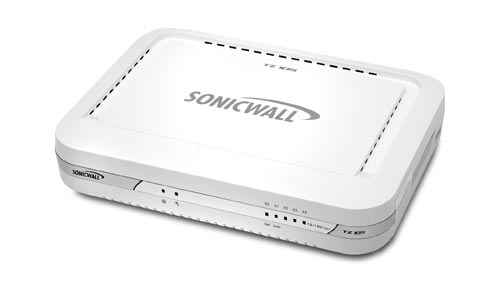

SonicWall TZ 105 Series
Unified Threat Management Firewall

Overview:

The SonicWall® TZ Series is the most secure Unified Threat Management (UTM) firewall for small businesses, retail deployments, remote sites, branch offices and distributed enterprises. Unlike consumer-grade products, the TZ Series delivers the most effective anti-malware, intrusion prevention, content/URL filtering and application control capabilities along with the broadest most secure mobile platform support for laptops, smartphones and tablets. It provides full deep packet inspection (DPI) at very high performance levels, eliminating the network bottleneck that other products introduce, and enabling organizations to realize increased productivity gains. The TZ Series is the most secure, sophisticated and widely-deployed security platform on the market today.

Additionally, the SonicWall Application Intelligence and Control capabilities in the TZ 215 ensures that bandwidth is available for business-critical applications while throttling or blocking unproductive applications. The TZ 215 also offers advanced application traffic analytics and reporting for deep insight into bandwidth utilization and security threats.

The TZ Series includes additional advanced networking features such as IPSec and SSL VPN, multiple ISP failover, load balancing, optional integrated 802.11n wireless and network segmentation, and also enables PCI compliance. The TZ Series is the only available UTM firewall that provides native VPN remote access client for Apple® iOS, Google® Android™, Windows, Mac OS and Linux. This unique client also supports Clean VPN™, which decontaminates threats from VPN traffic. Providing the most secure support for mobile platforms, only SonicWall delivers full malware scanning of SSL encrypted traffic and application control for Android and iOS devices.

The new TZ Series is an elegant integration of multiple point products, combined into a single solution providing value while reducing complexity.

• Built on the proven security architecture of SonicOS, the TZ Series provides highly effective anti-malware and intrusion prevention to keep networks safe from sophisticated modern threats.
• Highly secure SSL VPN remote access is available natively for Apple iOS, Google Android, Windows, Mac OS and Linux based devices to unleash the potential of a mobile workforce.
• SonicWall content and URL filtering blocks multiple categories of objectionable web content to enable high workplace productivity and reduce legal liability.
• Easy to comprehend and quick to deploy, the graphical user interface in the TZ Series eliminates the choice between ease-of-use and power, driving down total cost of ownership.

* U.S. Patent 7,310,815–A method and apparatus for data stream analysis and blocking.
** Available as an option only on the TZ 210 Series

Features and Benefits:

SonicWall TZ Series Features:
Intrusion Prevention
Signature-based Scanning	Tightly integrated, signature-based intrusion prevention scans packet payloads for vulnerabilities and exploits that target critical internal systems.
Automatic Signature Updates	SonicWall's Research Team continuously updates and deploys an extensive list of over 5,400 IPS signatures covering 52 attack categories. These signatures take immediate effect and do not require reboots or any other interruption in service.
Outbound Threat Prevention	The ability to inspect both inbound and outbound traffic ensures that the network will not unwittingly be used in Distributed Denial of Service attacks and will prevent any Command and Control Botnet communication.
Intra-Zone IPS Protection	Intrusion prevention can be deployed between internal security zones to protect sensitive servers and to prevent internal attacks.
VPN
IPSec VPN for Site-to-site Connectivity	High-performance IPSec VPN allows the firewall to connect remote branch offices to a central location.
SSL VPN or IPSec Client Remote Access	Utilize clientless SSL VPN technology or an easy-to-manage IPSec client for easy access to email, files, computers, intranet sites and applications from a variety of platforms.
Redundant VPN Gateway	When using multiple WANs, a primary and secondary VPN can be configured to allow seamless automatic failover and failback of all VPN sessions.
Route-based VPN	The ability to perform dynamic routing over VPN links ensures continuous uptime in the event of a temporary VPN tunnel failure by seamlessly re-routing traffic between endpoints through alternate routes.
Clean VPN	SonicWall Clean VPN™ both secures the integrity of VPN access and decontaminates malicious threats before they can enter the corporate network.
Gateway Threat Prevention
Gateway Anti-Malware	SonicWall's patented RFDPI engine scans all ports and protocols for viruses without file size or stream length limitation. SonicLabs Researchers constantly provide updated threat protection, providing faster response times and threat prevention.
Reassembly-Free Deep Packet (RFDPI)	Reassembly-Free Deep Packet Inspection keeps track of malware regardless of the order or inspection timing with which the packets arrive. This allows for extremely low latency while eliminating file and stream size limitations. This provides greater performance and security than outdated proxy designs which reassemble contents using sockets bolted to traditional anti-virus programs and are plagued with inefficiencies and the overhead of memory thrashing leading to high latency, low performance and size limitations.
Cloud Anti-Virus (AV)	Using the built-in RFDI engine, SonicWall can leverage the power of the cloud to provide the most comprehensive set of anti-malware signatures available, while minimizing latency or delay. The SonicWall Cloud Anti-Virus Service provides millions of additional malware signatures for inspection of executable files using the most up-to-date information available.
Bi-directional Inspection	RFDPI can be performed on both inbound and outbound connections to provide protection in all network traffic directions.
24x7 Signature Updates	SonicLabs Research Team team creates and updates signature databases that are propagated automatically to the firewalls in the field, with those signatures taking immediate effect without any reboot or service interruption required.
Firewall and Networking
Stateful Packet Inspection	All network traffic is inspected, analyzed and brought into compliance with firewall access policies.
DOS Attack Protection	SYN Flood protection provides defense against DOS attacks using both layer 3 SYN proxy and layer 2 SYN blacklisting technologies.
Flexible Deployment	Can be deployed in traditional NAT and Layer 2 Bridge modes.
Policy-based Routing	Create routes based on protocol to direct traffic to a preferred WAN connection with the ability to fail back to a secondary WAN in the event of an outage.
High Availability	Supports Active/Passive failover to ensure increased reliability by protecting against hardware or software faults.
WAN Load Balancing	Load balance up to four WAN interfaces using Round Robin, Spillover or Percentage based methods.
WAN Acceleration	WAN Acceleration decreases latency and increases transfer speeds between remote sites for even higher network efficiency gains.
VoIP
Advanced QoS	Guarantee critical communications with 802.1p and DSCP tagging and remapping of VoIP traffic on the network.
DPI of VoIP Traffic	Predefined signatures detect and block VoIP specific threats.
H.323 Gatekeeper and SIP Proxy Support	Block spam calls by requiring that all incoming calls are authorized and authenticated by H.323 gatekeeper or SIP proxy.
Management and Monitoring
Web GUI	An intuitive web-based interface allows quick and convenient configuration in addition to management through SonicWall Global Management System (GMS®), or the CLI.
SNMP	SNMP provides the ability to protectively monitor and respond to threats and alerts.
Netflow/IPFIX	Export an extended set of data through IPFIX or NetFlow protocols for granular insight into application traffic, bandwidth utilization and security threats in addition to powerful troubleshooting and forensics capabilities. Compatible with SonicWall Scrutinizer and third-party monitoring and reporting applications. (TZ 215 only)
Centralized Policy Management	With SonicWall GMS, monitor, configure and report on multiple SonicWall appliances from a single intuitive interface and customize your security environment to suit your individual policies.
Application Intelligence and Control
Application Control	Identify and control applications or individual components of an application based on RFDPI technology instead of relying on well-known ports and protocols.
Application Bandwidth Management	Allocate bandwidth to critical applications while throttling unproductive application traffic for an efficient and productive network.
Custom Application Identification	Create and configure custom application identification based on traffic parameters or on patterns unique to an application in its network communications.
Application Trafic Analytics	Provides organizations with granular insight into application traffic, bandwidth utilization and security in addition to powerful troubleshooting and forensics capabilities. (TZ 215 only)
Application Signature Database	A continuously expanding database of over 3,500 application signatures ensures that administrators are able to control the usage of all the latest applications on their network at a category or individual level.
User Activity Tracking	User identification is seamlessly integrated with Microsoft® Active Directory and other authentication systems enabling tracking and reporting of individual user identification.
GeoIP Country Traffic Identification	Identify and control network traffic going to or coming from specific countries. (TZ 215 only)

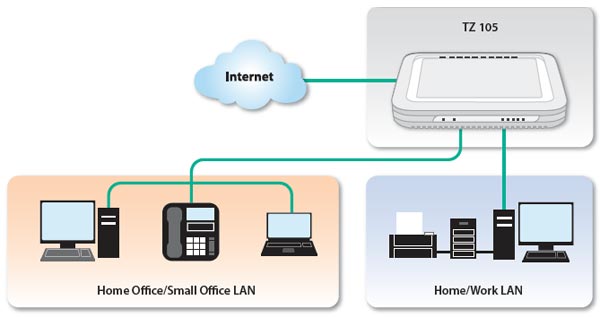

Deployment:

The new SonicWall TZ 105 is the most secure Unified Threat Management (UTM) firewall available for small offices, home offices and small retail deployments. Unlike consumer-grade products, the TZ 105 delivers the proven, most effective intrusion prevention, anti-malware and content/URL filtering, along with the broad mobile platform support for laptops, smartphones and tablets. It provides full deep packet inspection (DPI) at very high performance levels, eliminating the network bottleneck that other products introduce, and enabling organizations to realize increased productivity gains without the increased cost.

Specifications:

Models:	TZ 105 Series	TZ 205 Series	TZ 215 Series
Firewall
SonicOS Version	SonicOS 5.8.1 and later
Stateful Throughput1	200 Mbps	500 Mbps	500 Mbps
IPS Throughput2	60 Mbps	80 Mbps	110 Mbps
GAV Throughput2	40 Mbps	60 Mbps	70 Mbps
UTM Throughput2	25 Mbps	40 Mbps	60 Mbps
Maximum Connections3	8,000	12,000	48,000
Maximum UTM/DPI Connections	8,000	12,000	32,000
New Connections/Sec	1,000	1,500	1,800
Nodes Supported	Unrestricted
Denial of Service Attack Protection	22 classes of DoS, DDoS and scanning attacks
SonicPoints Supported	1	2	16
VPN	TZ 105 Series	TZ 205 Series	TZ 215 Series
3DES/AES Throughput4	75 Mbps	100 Mbps	130 Mbps
Site-to-Site VPN Tunnels	5	10	20
Bundled Global VPN Client Licenses (maximum)	0 (5)	2 (10)	2 (25)
Bundled SSL VPN Licenses (maximum)	1 (5)	1 (10)	2 (10)
Encryption/Authentication/DH Group	DES, 3DES, AES (128, 142, 256-bit), MD5, SHA-1, SHA-2/DH Group 1, 2, 5, 14
Virtual Assist Bundled (Maximum)	-	30-day trial (1)	30-day trial (2)
Key Exchange	IKE, Manual Key, Certificates (X.509), L2TP over IPSec
Certificate Support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN Features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN Client Platforms Supported	Microsoft® Windows XP, Vista 32/64-bit, Windows 7 32/64-bit
SSL VPN Platforms Supported	Microsoft Windows XP/Vista 32/64-bit/Windows 7, Mac OSX 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Platform	Apple® iOS 4.2 or higher, Google® Android™ 4.0 or higher
Security Services	TZ 105 Series	TZ 205 Series	TZ 215 Series
Deep Packet Inspection Services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Intelligence and Control (TZ 215 only)
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, ActiveX, Java Applet, and cookie blocking bandwidth management on filtering categories, allow/forbid lists
Enforced Client Anti-Virus and Anti-Spyware	McAfee®
Comprehensive Anti-Spam Service6	Supported
Application Intelligence and Control	Application Control		Application Traffic Visualization and Advanced Application Control
Networking	TZ 105 Series	TZ 205 Series	TZ 215 Series
IP Address Assignment	Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT Modes	1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
VLANs	5, Portshield	10, Portshield	10, Portshield
DHCP	Internal server, relay
Routing	OSPF, RIP v1/v2, static routes, policy-based routing, multicast
Authentication	LDAP, Local DB, RADIUS, XAUTH, X-Forwarders8
Single sign-on	AD, eDirectory, RADIUS Accounting, NTLM, X-Forwarders8		AD, eDirectory, RADIUS Accounting, NTLM, X-Forwarders8, Terminal Server and Citrix
Local User Database	150 users
VoIP	Full H.323v1-5, SIP, gatekeeper support, outbound bandwidth management, VoIP over WLAN,deep inspection security, full interoperability with most VoIP gateway and communications devices
System	TZ 105 Series	TZ 205 Series	TZ 215 Series
Zone Security	Yes	Yes	Yes
Schedules	Yes	Yes	Yes
Object-based/Group-based Management	Yes	Yes	Yes
DDNS	Dynamic DNS providers include: dyndns.org, yi.org, no-ip.com and changeip.com
Management and Monitoring	Local CLI, Web GUI (HTTP, HTTPS), SNMP v3; Global management with SonicWall GMS
Logging and Reporting	Analyzer, Scrutinizer, GMS, Local Log, Syslog, Solera Networks, NetFlow v5/v9 (TZ 215), IPFIX with Extensions (TZ 215), Real-time Visualization (TZ 215 only)
Hardware Failover	-	Active/Passive	Active/Passive
Anti-Spam	RBL support, Allowed/Blocked Lists, Optional SonicWall Comprehensive Anti-Spam Service6
Load Balancing	Yes, Outgoing and Incoming
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
WAN Acceleration Support7	Yes, with SonicWall WXA appliances
Built-in Wireless LAN	TZ 105W Series	TZ 205W Series	TZ 215W Series
Standards	802.11b/g/n	802.11a/b/g/n (3x3)	802.11a/b/g/n (3x3)
Wireless Security Standards	WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS
Virtual Access Points (VAPs)	Up to 8
Antennas	Double, detachable, dual	Triple: 2 external detachable, 1 internal	Triple, detachable, external
Radio Power: 802.11b/802.11g/802.11n	18 dBm max/18 dBm @ 6Mbps, 15 dBm @ 54Mbps	15.5 dBm max/18 dBm max/17 dBM @ 6 Mbps, 13 dBM @ 54 Mbps
Radio Power: 802.11a/802.11b/802.11g/802.11n	-	15.5 dBm max/18 dBm max/17 dBM @ 6 Mbps, 13 dBM @ 54 Mbps
Radio Power: 802.11n (2.4GHz)/802.11n (5.0GHz)	19 dBm MCS 0, 12 dBm MCS 15	19 dBm MCS 0, 11 dBm MCS 15/17 dBm MCS 0, 12 dBm MCS 15
Radio Receive Sensitivity: 802.11a/802.11b/802.11g	-90 dBm @ 11Mbps/-91 dBm @ 6 Mbps, -74 dBm @54 Mbps	-95 dBm MCS 0, -81 dBm MCS 15/-90 dBm @ 11Mbps/-91 dBm @ 6Mbps, -74 dBm @ 54 Mbps
Radio Receive Sensitivity: 802.11n (2.4GHz)/802.11n (5.0GHz)	-89 dBm MCS 0, -70 dBm MCS 15	-89 dBm MCS 0, -70 dBm MCS 15/-95 dBm MCS 0, -76 dBm MCS 15
Hardware	TZ 105 Series	TZ 205 Series	TZ 215 Series
Interfaces	(5) 10/100 Fast Ethernet, 1 USB, 1 Console	(5) 10/100/1000 Copper Gigabit, 1 USB, 1 Console	(7) 10/100/1000 Copper Gigabit, 2 USB, 1 Console
Processor	Single-Core	Dual-Core	Dual-Core
Flash Memory/RAM	32 MB/256 MB	32 MB/256 MB	32 MB/512 MB
3G Wireless/Modem5	Supported with approved adapters5
USB Ports	1	1	2
Power Input	100 to 240 VAC, 50-60 Hz, 1 A
Max Power Consumption	5.2W/7.0W	6.4W/10.5W	9.0W/12.0W
Total Heat Dissipation	17.8 BTU/23.7 BTU	21.9 BTU/35.8 BTU	30.6 BTU/41.4 BTU
Certifications	VPNC, ICSA Firewall 4.1
Certifications Pending	EAL4+, FIPS 140-2 Level 2, IPv6 Phase 1, IPv6 Phase 2
Dimensions	5.555 x 1.42 x 7.48 in (14.1 x 3.6 x 19 cm)	5.555 x 1.42 x 7.48 in (14.1 x 3.6 x 19 cm)	7.125 x 1.5 x 10.5 in (18.1 x 3.81 x 26.67 cm)
Weight	0.75 lbs/0.34 kg 0.84 lbs/0.38 kg	0.75 lbs/0.34 kg 0.84 lbs/0.38 kg	1.95 lbs/0.97 kg 2.15 lbs/0.97 kg
Major Regulatory Compliance	FCC Class A, CES Class A, CE, C-Tick, VCCI, Compliance MIC, NOM, UL, cUL, TUV/GS, CB, NOM, WEEE, RoHS
Environment/Humidity	40-105° F, 0-40° C/ 5-95% non-condensing
MTB	28 years/15 years

¹ Testing Methodologies: Maximum performance based on RFC 2544 (for firewall). Actual performance may vary depending on network conditions and activated services.
² UTM/Gateway AV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple flows through multiple port pairs.
³ Actual maximum connection counts are lower when DPI services are enabled.
⁴ VPN throughput measured using UDP traffic at 1280 byte packet size adhering to RFC 2544.
⁵ 3G card and modem are not included. See http://www.sonicwall.com/us/products/cardsupport.html for supported USB devices.
⁶ The Comprehensive Anti-Spam Service supports an unrestricted number of users but is recommended for 250 users or less.
⁷ With SonicWall WXA Series Appliances.
⁸ Web proxy using X-Forwarded-For

Documentation:

Download the SonicWall TZ Series Datasheet (PDF).
