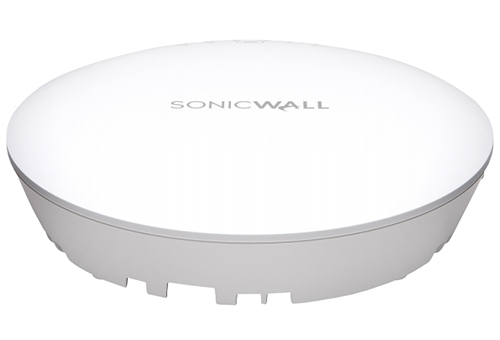

SonicWall SonicWave 432i
High-speed wireless that’s secure and easy to manage.

SonicWall SonicWave 432i

Sorry, this unit has been discontinued and is no longer available for purchase, please check out our SonicWall Gen 7 Firewalls. Last Order Day (LDO): 2022-04-22 - you can purchase available renewals below. End of Support (EOS): 2027-04-23 - we will no longer provide technical support, firmware updates/upgrades or hardware replacement for the product.

Overview:

SonicWall wireless network security products provide you with an enhanced wireless user experience by delivering the performance, range and reliability of 802.11ac and 802.11n wireless technologies with the SonicWave series access points. Benefit from advanced, industry-leading, patented security and wireless features. Leverage ease of deployment and management, at a low total cost of ownership.

MANAGE EASILY FROM THE CLOUD

Access your network from anywhere via the cloud
Achieve high scalability with simplified setup and management
Gain deeper insights with rich wireless analytics
Rely on centralized visibility and control

DELIVER AN EXCEPTIONAL WIFI USER EXPERIENCE WITH 802.11AC WAVE 2 TECHNOLOGY

Benefit from 802.11ac Wave 2 technology
Attain MU-MIMO support for faster performance
Gain Bluetooth Low Energy and mesh capabilities
Leverage advanced RF features

GAIN POWERFUL WIRELESS NETWORK SECURITY

Secure wireless communication with a dedicated third scanning security radio
Perform advanced security services directly on the AP
Achieve wireless intrusion detection and prevention
Pair with SonicWall next-gen firewalls

LEVERAGE EXTREMELY SIMPLE SETUP WITH ZERO-TOUCH DEPLOYMENT

Attain ZTD capability
Use the SonicWall SonicWiFi app for setup
Save time and effort in network roll-out
Obtain single-pane-of-glass management

LOWER TCO WITH COST-EFFECTIVE SOLUTION

Negate the need of costly wireless access controllers with WiFi Cloud Manager
Utilize the integrated wireless access controller in SonicWall firewalls
Reduce network roll-out cost significantly with ZTD and mesh technology

Features:

Intuitive cloud management

SonicWall WCM provides an intuitive user interface to manage all SonicWave APs from a single pane of glass via SonicWall Capture Security Center (CSC). Easily monitor and manage networks with alerts and rich analytics updated in realtime. Always stay up-to-date with the current features and enhancements from the latest firmware.

Enhanced user experience

With multiple transmitting and receiving antennas, SonicWave APs are engineered to optimize signal quality, range and reliability for wireless devices. SonicWave APs supports fast roaming, so that users can roam from one location to another seamlessly. Feature-rich portfolio includes air-time fairness, band steering, and signal analysis tools for monitoring and troubleshooting.

Best-in-class wireless security

SonicWall firewalls scan all wireless traffic coming into and going out of the network using deep packet inspection technology and then remove harmful threats such as malware and intrusions, even over SSL/TLS encrypted connections.

Simplified firewall management

Deployment and setup of APs are greatly simplified, reducing total cost of ownership. Optionally, SonicWave APs can be managed by SonicWall next-gen firewalls. Integrated into every SonicWall firewall is a wireless controller that autodetects and auto-provisions SonicWave APs across the network.

Zero-Touch Deployment (ZTD) powered by SonicWiFi app

Easily register and onboard SonicWave APs with the help of SonicWall SonicWiFi mobile app. The APs are automatically detected and provisioned with ZeroTouch Deployment. Available on iOS and Android, SonicWiFi mobile app lets network admins monitor and

Ruggedized outdoor design

SonicWave outdoor APs are built to withstand rough outdoor conditions with industrial-grade enclosure. These APs are IP67 rated, which ensures protection against dust and water immersion

Specifications:

RADIO SPECIFICATIONS	SONICWAVE 432e	SONICWAVE 432i	SONICWAVE 432o
Radios	Dual: 4x4 11n + 4x4 11ac MU-MIMO; Dedicated third scanning radio; Bluetooth Low Energy radio
Frequency bands	802.11a: 5.180-5.825 GHz 802.11b/g: 2.412-2.472 GHz 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz 802.11ac: 2.412-2.472 GHz, 5.180-5.825 GHz
Operating channels	802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
Transmit output power	Based on the regulatory domain specified by the system administrator
Transmit power control		Supported
Data rates supported	802.11a: 6,9,12,18,24,36,48,54 Mbps per channel 802.11b: 1,2,5.5,11 Mbps per channel 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15, 30, 45, 60, 90, 120, 135, 150 Mbps per channel 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7, 1040, 1170, 1300, 1560, 1733.4 Mbps per channel
Modulation technology spectrum	802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM)
SECURITY	SONICWAVE 432e	SONICWAVE 432i	SONICWAVE 432o
Data encryption	WPA2, IPSec, 802.11i, WPA, 64/128/152-bit WEP, TKIP, AES, SSL VPN*
AUTHENTICATION	SONICWAVE 432e	SONICWAVE 432i	SONICWAVE 432o
Authentication	RADIUS, Active Directory, single sign-on (SSO)

HARDWARE SPECIFICATIONS	SONICWAVE 432e	SONICWAVE 432i	SONICWAVE 432o
Location	Indoor	Indoor	Outdoor
Dimensions	8.5 (D) x 2.0 (H) in 21.6 (D) x 5.1 (H) cm	8.5 (D) x 2.0 (H) in 21.6 (D) x 5.1 (H) cm	9.5 (W) x 9.3 (D) x 2.4 (H) in 24.1 (W) x 23.6 (D) x 6.1 (H) cm
Weight	1.1 kg / 2.5 lbs	1.0 kg / 2.2 lbs	2.2 kg / 4.9 lbs
WEEE weight	1.4 kg / 3.1 lbs	1.2 kg / 2.6 lbs	4.1 kg / 9.1 lbs
Shipping weight	1.7 kg / 3.8 lbs	1.5 kg / 3.3 lbs	4.7 kg / 10.4 lbs
PoE injector		802.3at
Maximum power consumption (W)	18.8 W	18.8 W	21.2 W

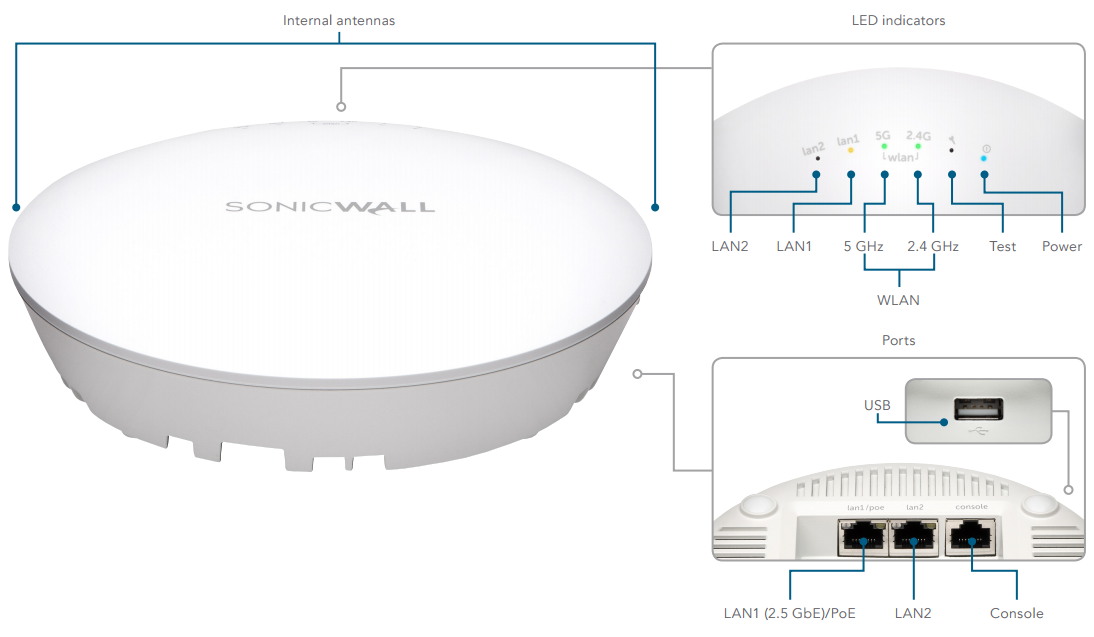

Status indicators	Six (6) LED (WLAN/Link) (LAN/Link) Power, Test
Antennas	4+4 (SMA 2.4 GHz + TNC 5 GHz)	8 fully internal	8 N-type dipole
Wired network ports	(1) 10/100/1000 auto-sensing RJ-45 for Ethernet and Power over Ethernet (PoE); (1) 100/1000/2.5 GbE auto-sensing RJ-45 for Ethernet; (1) RJ-45 console; (1) USB 2.0 (except 432o)
Accessories included		Wall/ceiling mount kit
Virtual access points/SSID group	Up to 8 per access point
Chassis	UL 1024 plenum rated
STANDARDS AND COMPLIANCE	SONICWAVE 432e	SONICWAVE 432i	SONICWAVE 432o
IEEE Standards	802.11ac Wave 2, 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.11e, 802.11i, 802.11r, 802.11k, 802.11v, 802.11w
Compliance	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11e, IEEE 802.11i, IEEE 802.3at, IEEE 802.3bz, WPA, TKIP, AES, IEEE 802.11r, IEEE 802.11k, IEEE 802.11v, IEEE 802.11w
Wi-Fi Alliance Certification ID	WFA74776	WFA74777	WFA74189
Regulatory	FCC/ICES Class B, CE, RCM/ACMA, VCCI Class B, TELEC, BSMI, NCC, MSIP, ANATEL, Customs Union, RoHS (Europe/China), WEEE
Safety Approvals	UL E211396, UL 62368-1, UL 60950-1 cUL CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 62368-1-14 EN 60950-1 Or EN 62368-1 IEC 60950-1, IEC 62368-1 Europe: EN 60950-1, EN 62368-1 Taiwan: CNS 1336-1
Radio Approvals	USA: FCC Part 15C, 15E Canada: ISED RSS-247 Europe: (RED) EN 300 328, EN 301 893 Aus/NZ: AS/NZs 4268 Taiwan: NCC LP002 Additional country approvals for Japan, Korea, China, India, Brazil
EMI Approvals	USA: FCC P15B Canada: ICES-003 Europe: EN 301 489-1, -17, EN 55032, EN 55024 Aus/NZ: CISPR 32 Japan: VCCI Taiwan: CNS 13438
Exposure Approvals	USA: FCC Part 2 Canada: RSS-102 Europe: EN 50385 Aus/Nz: ASNZS 2772
MIMO	MU-MIMO 4x4 (4 streams)
Max/Recommended connected clients per radio		128/48
Safety	UL, cUL, TUV/GS, CB, CE, BSMI, Mexico CoC, Customs Union
ENVIRONMENTAL	SONICWAVE 432e	SONICWAVE 432i	SONICWAVE 432o
Temperature range	32 to 104°F, 0 to 40°C		-40 to 140°F, -40 to 60°C
Humidity	10 - 95%, non-condensing

Views:

SonicWave 432i Views

Documentation:

Download the SonicWall SonicWave Series Datasheet (.PDF)

Pricing Notes:

Pricing and product availability subject to change without notice.
