Rack Mount Kit for SonicWall TZ500
RM-SW-T5:
This product is no longer available.
Please Contact us for more information.
All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.
Looking to save more?! Our rackmounts bundles are at the best price, please contact us for assistant!
You can purchase the rackmount kit and hardware separately or save more by buying them bundle together. Each bundle comes with a hardware and rackmount design for that hardware.
Rack mount kit for:

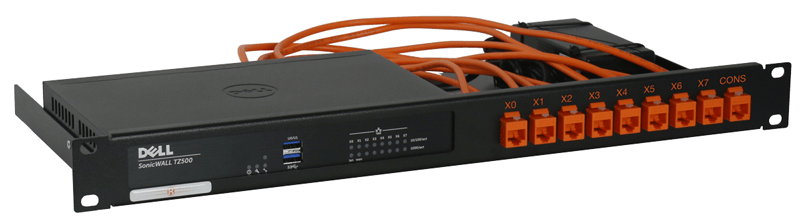

- SonicWall TZ500The RM-SW-T5 gives you the ability to mount your SonicWall desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixated to prevent an accidental loss of power.

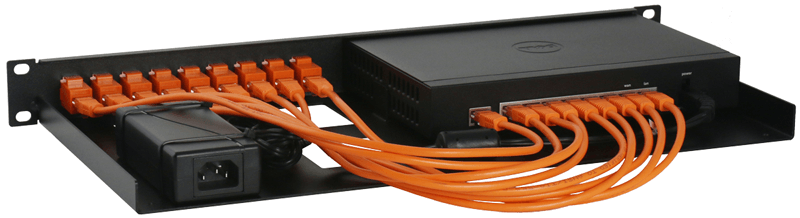

Assembly will take about 5 minutes. Simply slide your SonicWall device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.
Image Views:
| Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | Sonicwall |
| For Use | SonicWall TZ500 |
| Color | RAL 9005 Jet Black |
| Height | 1U |
| Dimensions (height x width x depth) |
1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm) |
| Number of connections brought to the front | 9 |
| Console port to the front | Yes |
| Cables | 9x 0.5m cables |
| Couplers | 9x RJ45 couplers |
| What's in the box |
|
Download the RM-WG-T5 Datasheet (PDF).
